5.0" TFT Clip-On Rear View Mirror Monitor with w/ Camera Bundle

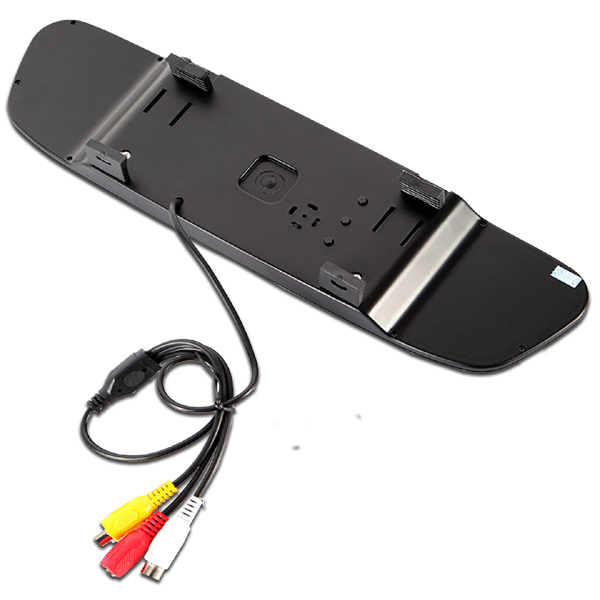

- The RVM-5002 is a 5.0" digital LCD screen that is centrally located on the mirror, its designed specifically to easily clip-on over the existing factory rear view mirror in seconds without having to use any tools
- This mirror has two separate video inputs for hooking up to two separate reverse cameras or one single reverse camera and an alternate external video source.
- When the vehicle ignition is powered on, the mirror will be turned on to get the screen ready for viewing.
- The video inputs are current sensing so no image will appear until a video signal comes through on one of the video inputs.
- The mirror will automatically switch over to the reverse camera input when the vehicle is shifted into reverse and will switch back to the primary video input when the vehicle is shifted back into drive or park.
- If there is no video source on the primary video input, the monitor will not activate.
- The 5.0" LCD screen is completely invisible when not in use so it will not distract the driver.
- The RVM-5002 can be used with any camera that uses an RCA cable video connection
Features:
- 5" digital color TFT LCD monitor
- High-resolution picture
- Dual video input port
- Rear view camera priority on
- Video sensing inputs
- Multi-language selection: English, French, Russian, German, Spanish, Portuguese, Italian, Turkish, Polish, Japanese and Chinese.
- Adjustable, brightness, contrast, color and language
- Easy installation, just clip on the original mirror
- No audio input or output
Specification:
- Display: TFT - LCD
- Size: 5.0'' LCD screen
- Brightness: 250cd/m2
- Resolution: 480*272
- Aspect Ratio: 16:9 / 4:3
- Power Supply: DC12V
- Power Consumption: Less than 3.5w
- Signal System: PAL/AUTO/NTSC
- Color: Black
- Monitor size: 28.5 * 8.4 * 3.5cm / 11.22 * 3.31 * 1.38in
- Certificate: ISO, CE, RoHS, FCC
- 1-year Manufacturer's Warranty
Links VU - License Plate Rear View Camera

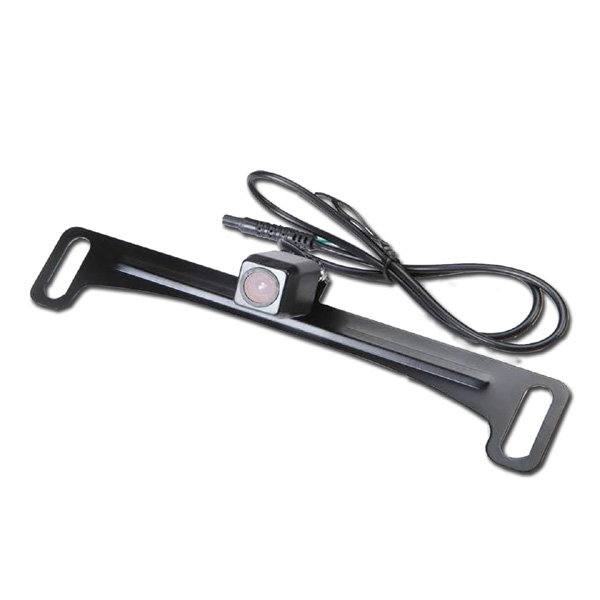

- The RVC-5781 is a bar type camera with a "hide-away" bracket designed to be mounted on the vehicle license plate using the existing license plate holes.
- The Camera will maintains a very low-profile on the vehicle, The entire mounting bracket is made to be hidden behind the license plate so that only the camera lens is visible.
- The RVC-5781 can be used on any passenger vehicle, truck, SUV or van. It can even be used on bigger trucks, buses or motor homes.
- The waterproof design allows the camera to face harsh weather elements in any climate.
- The RVC-5781 includes a built-in color-coded distance meter to help the driver accurately judge the distance behind the vehicle when reversing, and also includes built-in circuitry for reverse imaging this feature is ideal fro front mount. (Both features can be turned on or off when installing the camera.)
Overview:
- License or Lip mount camera
- The RVC-5781 maintains a very low-profile on the vehicle
- Hide away license plate bracket
- Quicker and easier installation
- Built-In parking guide lines and reverse imaging
- Made of durable die-cast metal construction
- 1-year Manufacturer's warranty
- One / pack
- Priced / each
Specifications::
- Image device: 1/4 inch color CMOS
- Horizontal viewing angle: 150°
- Vertical viewing angle: 120°
- Effective pixels: 648*488
- Reverse image: Selectable
- Guide lines: Selectable
- Night vision: No
- Resolution: 420 TV Lines
- TV system: NTSC
- Minimum illumination: 05 Lux
- Operating temperature: -30~+70 C
- Water roof: IP67 - IP68
- Audio: No
- Power supply: DC12 (+/-10%), max 150mA
- Camera Dimensions (mm): 20L x 20W x 26D
- License Plate Bracket Dimensions (mm): 33L x 195W x 14D
What's in the box:
- Rearview mirror-monitor
- License or Lip mount camera
- 8' Video/Power/Ground harness
- Cable cover
- Instructions
