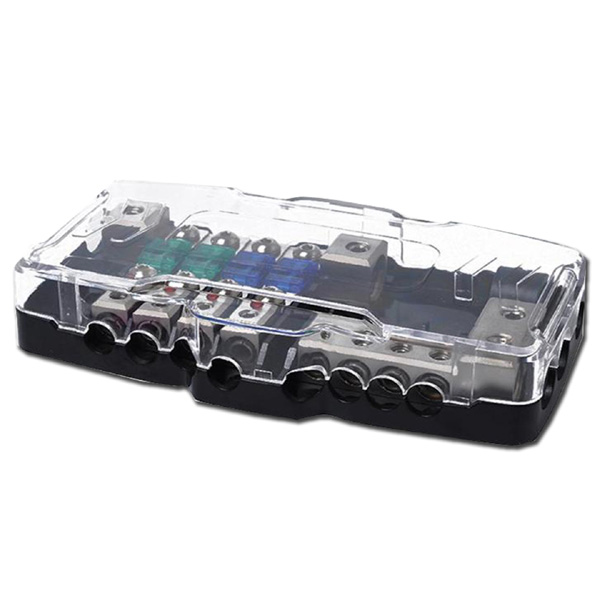

4 Way MANL Fuse Block, 2-0g / 4g > 4-4/8g with LED
- A distribution block acts as the "nerve center" of your amplifier installation — a single power wire runs from your battery to the block, with smaller wires branching off to your various components.
- It's a more efficient way to run your wiring, and it also makes it easier to troubleshoot problems.
- Our distribution fuse block can handle up to three 4-gauge inputs and three 8-gauge outputs, which makes it perfect for special application systems, In your car, you can run power straight from your battery to the block to deliver two lines of clean, protected power to both your full-range and sub-woofer amps.
- Our distribution fuse blocks machined from a solid brass, then coated with corrosion-resistant, platinum plated for outstanding current delivery and low power loss.
- A clear, impact-resistant quick-release covers allow easy access to fuses, while steel spring-clips make sure your fuses always maintain solid contact for your power cables stay secure in deep socket compression-screw terminals.
- The FDB-204448PL Include an Indicator function: When the red LED is lit, it means the fuse is blown, you need to replace the fuse in time to continue running.
Overview:
- Wide range of applications
- Easy to install
- Can store spare fuses
- Red LED ON?? = fuse is blown .
- 2 x 0 gauge / 2 x 4 gauge input,
- 4 x 4 gauge / 8 gauge outputs
- 2 x 0 gauge / 4 gauge Input 4 x 4 gauge Output
Specifications:
- Product material: zinc alloy + PC
- Product size: 16.2*9.1*3.3cm/6.38*3.59*1.30"
- Product weight: 440g
- Product rated voltage: 32V DC
- Fuse Amperage: Green 30 A*2, Blue 60A*2, Purple 100A *2
- One / pack
- Priced / Each
