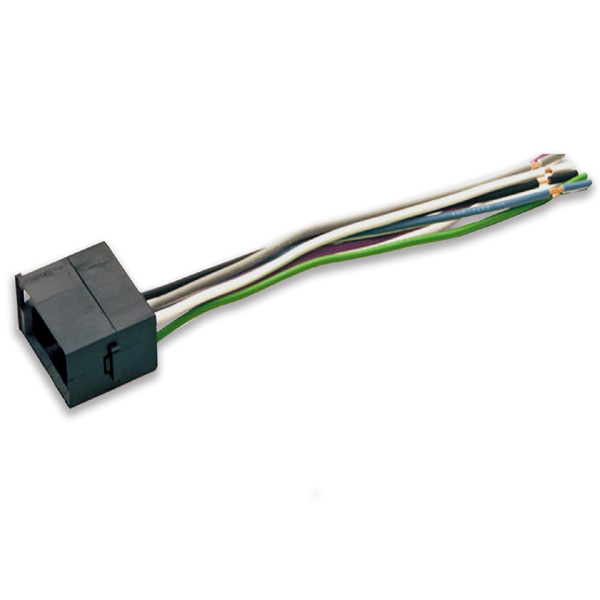

Volkswagen 1987-2001, Pre-Amp Harness
- This car radio harness allows the installation of an aftermarket head unit into a car without cutting and splicing the factory radio harness.
Overview:
- Pre-Amp Harness
- 10-Pin Pre-amp plug
- For use with VW Amplified speaker system
- Includes AMP Turn-on lead
- Plugs into the car's original radio connectors
- No wire cutting needed for factory radio connectors
- Pre-stripped end leads allow for easy connections
- High impact ABS plastic molded connectors
- Color coded for easy installation
- 6" flexible leads
- 1-year warranty
E.I.A Colour Code:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
Product Home Page:
- click here for more information.
In Stock
VW 87-01, 10 pin Pre-Amp Harness
Sub: 70-9001
