Harness / Modules - Into Car Harness

Transit 10-up Power/Speakers Into Car Harness
Sub: FD-5523C
Part Number:
70-5523
Brand:
Metra
Availability:
In Stock
List Price:
$25.16

UPC Code:
N/A
Weight:
0 Lb
Status:
Stock Item

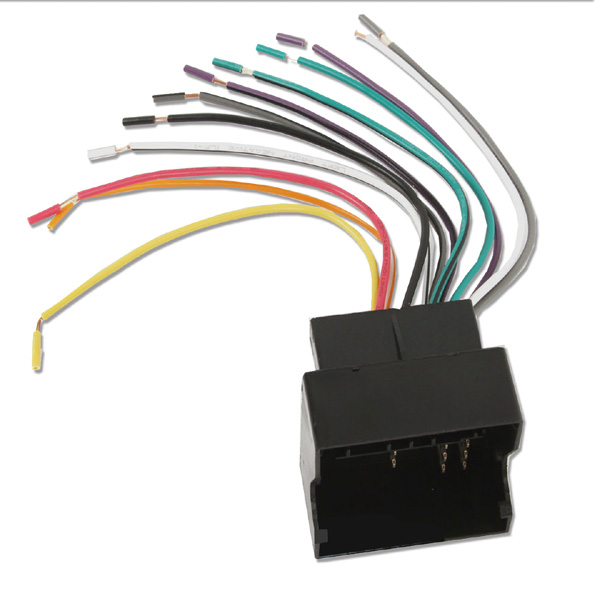

Ford Transit 2010-2012, Power / Speakers Harness

  • This car radio harness allows the installation of an aftermarket head unit into a car without cutting and splicing the factory radio harness.

Overview:
  • Wiring harness for fast and easy radio installation
  • Plugs into the car's original radio connectors
  • Provides power and four speakers
  • Pre-wired AXSWC harness (AXSWC sold separately)
  • No wire cutting needed for factory radio connectors
  • Pre-stripped end leads allow for easy connections
  • High impact ABS plastic molded connectors
  • Color coded for easy installation
  • 6" flexible leads
  • 1-year warranty



E.I.A Colour Code:

  • Yellow – 12V Constant
  • Red – 12V Accessory
  • Black - Ground
  • Orange – Dash Light Dimmer/Illumination
  • Green – Left Rear Speaker (+)
  • Green with Black Stripe Left Rear Speaker (-)
  • White – Left Front Speaker (+)
  • White with Black Stripe – Left Front Speaker (-)
  • Purple – Right Rear Speaker (+)
  • Purple with Black Stripe – Right Rear Speaker (-)
  • Gray – Right Front Speaker (+)
  • Gray with Black Stripe – Right Front Speaker (-)

Product Home Page:
  • click here for more information.



In Stock
Transit 10-up, Power/Speakrs Into Car Harness
