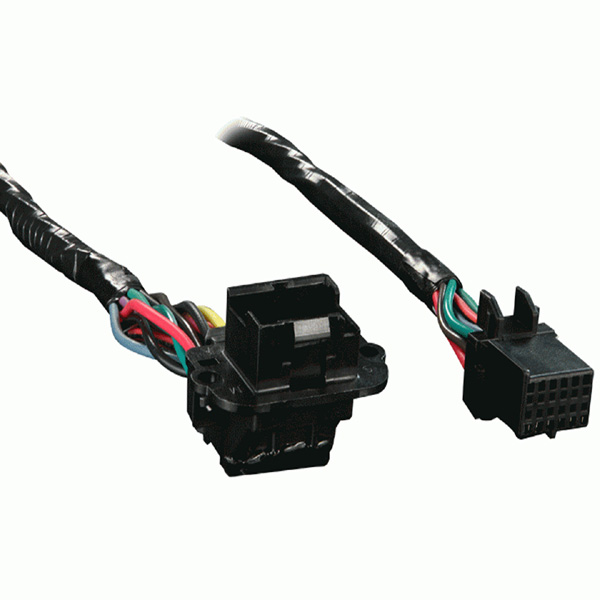

GM 2000-2006 Class II OEM Radio Retention (24pin) T-Harness
- This car radio harness allows the installation of an aftermarket head unit into a car without cutting and splicing the factory radio harness.
Overview:
- Wiring harness for fast and easy radio installation
- Relocates factory radio for retention (24 pin) of Class 2 Data features (to be used with SP-2003)
- Plugs into the car's original radio connectors
- No wire cutting needed for factory radio connectors
- Pre-stripped end leads allow for easy connections
- High impact ABS plastic molded connectors
- Color coded for easy installation
- 6" flexible leads
- 1-year warranty
E.I.A Colour Code:
- Yellow – 12V Constant
- Red – 12V Accessory
- Black - Ground
- Orange – Dash Light Dimmer/Illumination
- Green – Left Rear Speaker (+)
- Green with Black Stripe Left Rear Speaker (-)
- White – Left Front Speaker (+)
- White with Black Stripe – Left Front Speaker (-)
- Purple – Right Rear Speaker (+)
- Purple with Black Stripe – Right Rear Speaker (-)
- Gray – Right Front Speaker (+)
- Gray with Black Stripe – Right Front Speaker (-)
