Camera - Universal

Safty View - License Plate Rear View Camera

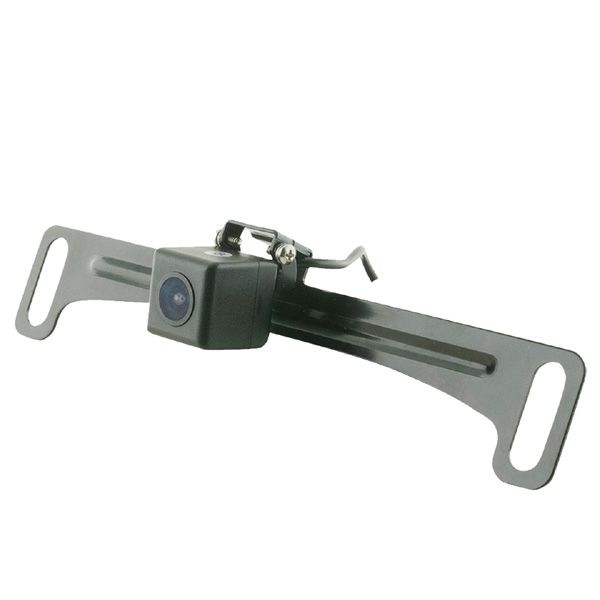

• The TV-LPD24 is a bar type camera with a "hide-away" bracket designed to be mounted on the vehicle license plate using the existing license plate holes.
• The Camera will maintains a very low-profile on the vehicle, The entire mounting bracket is made to be hidden behind the license plate so that only the camera lens is visible.
• The TV-LPD24 can be used on any passenger vehicle, truck, SUV or van. It can even be used on bigger trucks, buses or motor homes.
• The waterproof design allows the camera to face harsh weather elements in any climate.
• The TV-LPD24 includes a built-in color-coded distance meter to help the driver accurately judge the distance behind the vehicle when reversing, and also includes built-in circuitry for reverse imaging this feature is ideal fro front mount. (Both features can be turned on or off when installing the camera.)

Overview:

• License or Lip mount camera with night vision
• The LB1001S maintains a very low-profile on the vehicle
• Hide away license plate bracket
• Quicker and easier installation
• Built-In parking guide lines and reverse imaging
• Made of durable die-cast metal construction
• 1-year Manufacturer's warranty
• One / pack
• Priced / each

Specifications::

• Image device:  1/4 inch color CMOS

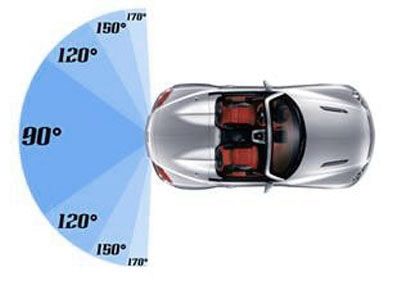

• Horizontal viewing angle: 150°
• Vertical viewing angle: 120°
• Effective pixels: 648*488
• Reverse image: Selectable
• Guide lines: Selectable
• Night vision: No
• Resolution: 420 TV Lines
• TV system: NTSC
• Minimum illumination: 05 Lux
• Operating temperature: -30~+70 C
• Water roof: IP67 - IP68
• Audio: No
• Power supply: DC12 (+/-10%), max 150mA
• Camera Dimensions (mm): 20L x 20W x 26D
• License Plate Bracket Dimensions (mm): 33L x 195W x 14D
