Car Radio Install Kits - Premium

Ford F-Series 15-18, DDIN Radio Install Kit
w/ Harness (Requires Maestro ADS-MRR Module
Part Number:
KIT-FTR1
Brand:
iData Maestro
Availability:
In Stock
List Price:
$217.60

UPC Code:
627780002101
Weight:
0 Lb
Status:
Stock Item

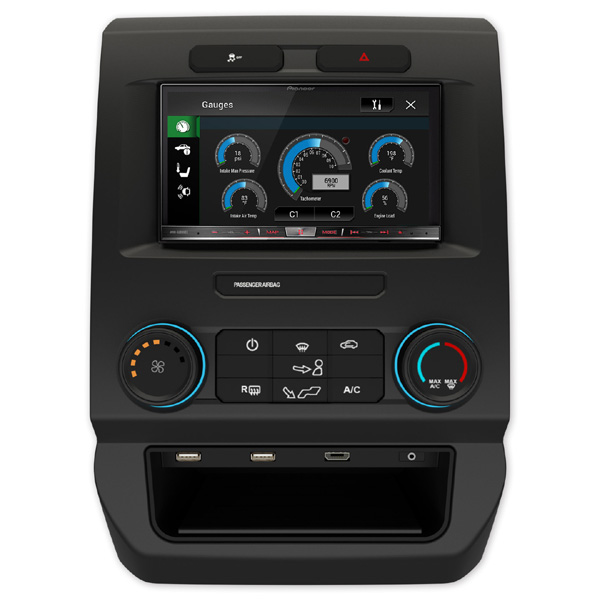

Ford F-150 2015-21, DDIN Radio Dash Kit

  • The 2015-21 Ford pickups are great vehicles, but their dashboard makes it difficult to upgrade the factory radio.
  • The iDatalink KIT-FTR1 factory system adapter (along with the Maestro ADS-MRR module (sold separately) gives you everything you need to install an aftermarket double-DIN (4" tall) stereo and wire it up to your Ford pickup with its 4.3" My Ford radio. With any car stereo, this package retains your amplifier and backup camera (if equipped), along with your steering wheel audio controls.



iDatalink Compatible:

  • Install an iDatalink-compatible car stereo from Alpine, JVC, Kenwood, Sony, or Pioneer, and you'll also retain your car's SYNC features, including hands-free calling and music streaming.
  • You'll also retain the fader control and full functionality of your factory amplifier, along with your rear seat entertainment system (if present).
  • Your climate controls will appear on your new car stereo's touchscreen, and you can set up gauges to check engine performance and other vehicle data, such as tire pressure, battery voltage, and "door ajar" warnings.
  • You'll be able to choose which gauges you'd like to appear on the screen, and you'll even be able to check the engine codes when a warning light comes on.



Overview:

  • Allows you to install a double-DIN radio in your Ford Focus (also requires the Maestro ADS-MRR module)
  • includes dash kit, wiring harness, and other wiring
  • retains steering wheel controls and backup camera with any car stereo
  • extra features with an iDatalink-compatible radio
    • SYNC (including USB port, Aux input, and Bluetooth)
    • climate control display on touchscreen
    • visual park assist, tire pressure display, voltage display, and more
  • warranty: 1 year

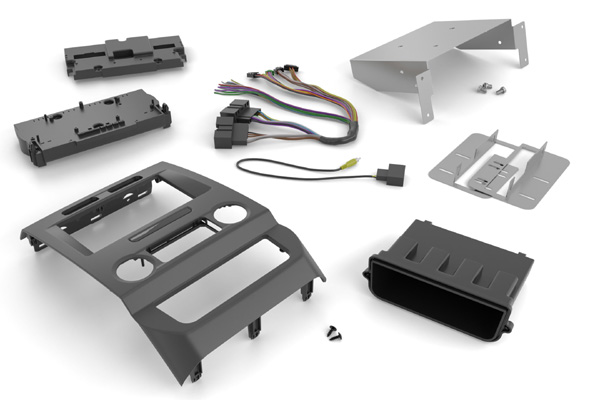

What's In the Box:

  • Radio housing
  • Vehicle harness
  • OBDII harness
  • Jumper harness
  • 2-Pin harness (blue/yellow wire)
  • 2-Pin harness (yellow/black wires)
  • Multi-pin harness (yellow/red/black wires)
  • Ribbon harness
  • Pocket with media ports
  • Antenna adapter
  • Rubber mat
  • 2 Side brackets
  • Bottom bracket
  • 2 Pocket screws
  • Four M5 x 20mm screws
  • Three M6 x 12mm screws
  • Four M5 washers
  • Three M6 washers
  • Quick Start Guide



Product Home Page:

  • click here for more information.
