Camera - OEM Style

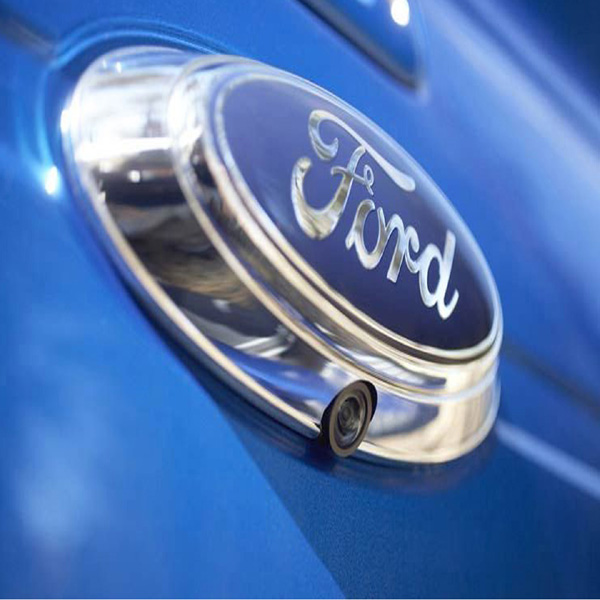

Ford F-150 2009-2014, Ford Emblem w/ Rear View Camera

• Ford Emblem replacement rear view camera
• The black finish camera has a high quality CMD - III sensor reverse camera with 170 degree viewing angle allowing you to see everything behind your vehicle.
• The camera features an RCA output making it compatible with any monitor even factory navigation system with an interface.

Oververview:

• CMD-III Camera is integrated into license plate light
• Parking Assist Lines (Selectable)
• Requires no modification to the vehicle
•  Constructed of high-grade ABS plastic
• Available in Black
• Camera is barely noticeable once installed
• Waterproof design

Specifications:

• Image Device: 1/3" Colour CMD-III
• Horizontal viewing angle: 170° Wide
• Vertical Viewing Angle: 90°
• Lens: 6 layer crystal
• Digital supper clarity image sensor
• Range for Objects: 2-3 meters
• TV system: NTSC
• Horizontal Definition: 420 TV Lines
• Mirror/Non mirror (Selectable)
• Parking line: On/Off  (Selectable)
• Minimum illumination: 0.5 Lux, 0 Lux
• Connection: RCA Connector
• Operation Temperature: -30ºC to + 70 ºC
• Power Adapter: 9 > 16 VDC
• Water proof: IP67 - IP68
• Warranty: 1 year
