Strobe Lights & Acc.

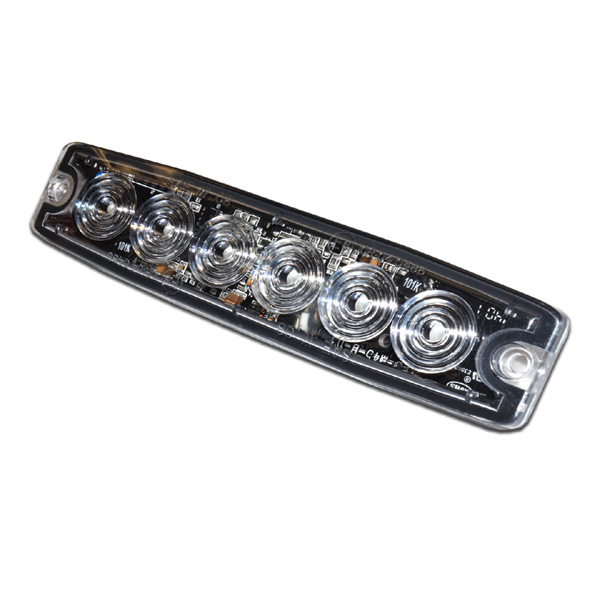

SPT - Super Low Profile 6 x 3w LED Strob Lights - White/White

• Excellent for tight spaces and universally applicable.
• Compact but powerful directional LED Warning Lights
• Super low profile - about 1/4” in height.
• Very bright and complies with SAE Class 1 standards.
• Uses 6 x 3 Watt high power LEDs. Internal controller has 23 strobe patterns that can be synchronized to flash together or flash opposite.
• Various mounting brackets available for E-916 series - easily mounts on every application : surface mount, grill mount, dash mount or head liner mount.
• Painted aluminum heat-sink housing with two mounting holes.
• Applications include marked or unmarked police cars, ambulances, firetrucks, rescue vehicles, water patrol boats, roadside assistance trucks, wreckers, and tractors.

• LED Colour: White/White
• Flash Patterns: 23 Patterns
• Mounting: Screw/Stick On
• Polycarbonate lens
• Voltage: 12V to 24V
• Dimension: 5.13" L x 1.19" W x 0.25" H
• Amp. Draw: 0.6 @ 12V
• Housing: Aluminum Base
• Lens: Polycarbonate
• IP Rating: IP67
• EMC: Certified
• Surface Mount: 2 Holes @ 4 ” centres
• SAE: J595 Class 1 on 5 Flashes
• One / pack
• priced / pack

Applications:

• Marked or unmarked police cars
• Ambulances
• Firetrucks
• Rescue vehicles
• Water patrol boats
• Roadside assistance trucks
• Wreckers
• Tractors
• Tow trucks

• Push and hold switch for 5 seconds to go to the next pattern
• Push rapidly 3 times to go to pattern # 1
• If no momentary

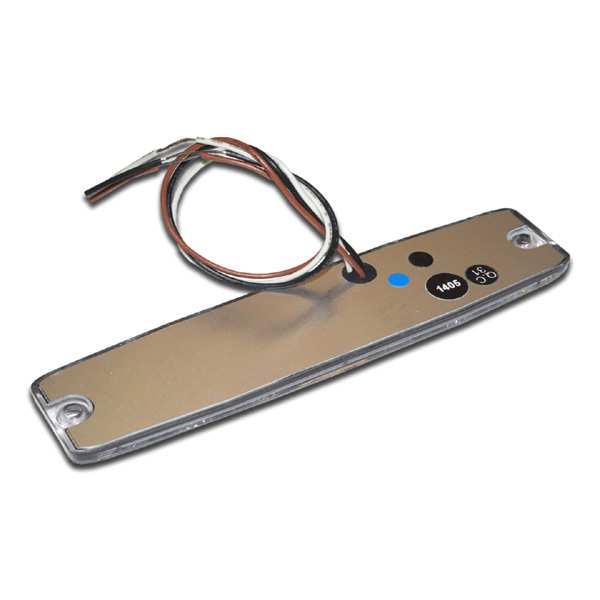

Wiring:

• White = Power
• Black = Grond
• Brown = Pattern Selection
